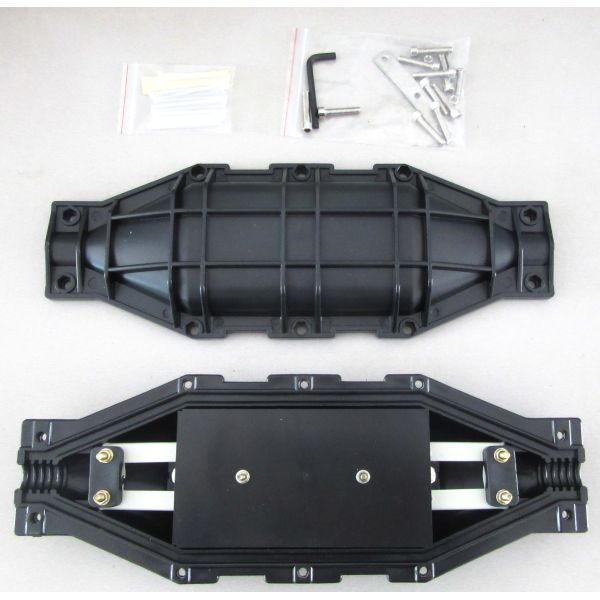

Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores
Quick detail about horizontal fiber optic splice closure:
Name: Inline/ Horizontal Type Fiber Optic Connection Box
Part number: KCO-H-1-1-02
Size: 390*140*80mm
Weight: about 1.0kg
Cable entry port: 2 ports
Capacity of fibers: 36 cores
Splice tray number: max. 3 trays
Material: ABS / PC / PPR / PP Plastic
Cable Diameter: 7.0-22.0mm
Working temperature: -40℃ to 65℃
Features:
- Widely used in FTTH access network
- Aerial-hanging
- Wall-mounting
- Duct
- Direct-bury
Technical Parameter:
Working Temperature: -40 degrees centigrade~+70 degrees centigrade
Atmospheric Pressure: 70~150Kpa
Axial Tension: >2000N/1min
Stretching Resistance: 2500N/10 square centimetre(1min)
Insulation resistance: >2*104MΩ
Voltage Strength: 15KV/1min, no arcover or breakdown
Pressure in the water: 50m/72hours
Splice tray with optical taking-in radius: ≥40mm. Low optical loss
Descriptions:
The fiber optic splice closure is used in the field of cable network, overhead pipe, buried wiring connection or joint protection equipment.
All property indexes are in accordance with National YD/T814-1996 Standard.
The case body is made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure. It is in the shape of half rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck andlong service life.
The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) andsealed tape. - Reliable sealing capability. It can be re-opened and easy to maintain.
Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
Product pictures:
Main parts:
| No. | Name | Quantity | Usage | Remark |
|---|
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion splice tray | Max.4 tray | Fix fiber, Protect heat-shrinkable tube Sleeve | |
| 3 | Foundation | 1 set | Fix cable,reinforced core and tray | |
| 4 | Seal fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement,inspection sealing | Configure by user |
Accessories list:
| No. | Name of accessories | Quantity | Usage | Remarks |
|---|
| 1 | Heat shrinkable tube | | Protecting fiber splices | Configuration as per capacity |
| 2 | Nylon tie | | Fixing fiber with protective coat | Configuration as per capacity |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Label tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air. | |
